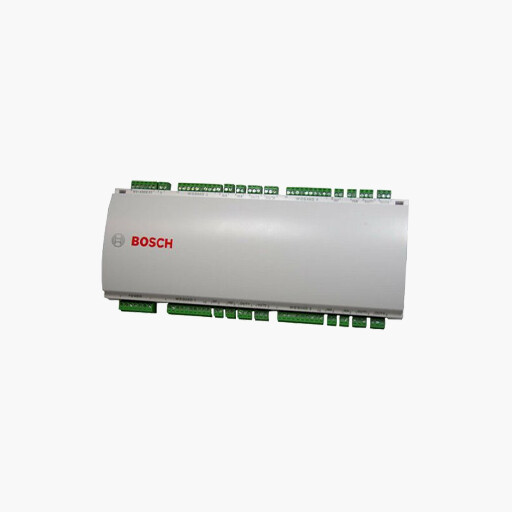

Bosch API-AMC2-4WE AMC2 Door Controller Wiegand Extension

Description

The extension module AMC2 4W-EXT is equipped with four Wiegand type reader-interfaces plus eight inputs and eight outputs. Hence with the AMC2 4W-EXT it is possible to double the number of readers on an AMC2 4W from 4 to 8.

The AMC2 4W-EXT can not be deployed as an independent controller but only as an extension module for the AMC2 4W. Control and access decisions and bookings are carried out by the AMC2 4W alone.

Main Features

• RS485 connection to the AMC2 4W controller
• 4 Wiegand reader interfaces
• 8 analog inputs
• 8 relays outputs (wet or dry)
• Status of inputs and outputs shows on AMC2 4W LCD display
• Transfer rate to EXT interface (RS485): 9,6 kBit/sec
