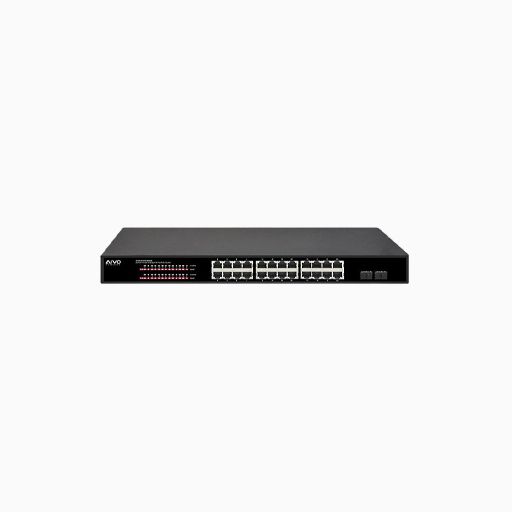

AVYCON AVN-S24-2P24W400G-SP 24-Port 400w Gigabit PoE Switch

Description

The AVN-S24-2P24W400G-SP provides 24 PoE/PoE+ ports, which can automatically detect and provide power for any connected 802.3at/af Powered Device (PD), such as VOIP Phones, APs, IP Phones and IP Cameras.

With its built-in surge protection feature, it is suitable for larger commercial applications. The AVN-S24-2P24W400G-SP comes with industrial standard 19'' 1U rack-mountable chassis.

Main Features

• IEEE802.3af / IEE802.3at Compliant
• Total PoE budget of 370W
• IEEE802.3x Flow control
• Up to 8k MAC address table size
• EMI standards complies with FCC, CE class B
• Pin Assignment: V+ (RJ45 Pins 1, 2), V- (RJ45 Pins 3, 6)
• 24 x 10/100/1000Base-TX Ports and 2 x 1000Mbps SFP Ports
• 24 x PoE / PoE+ ports, with each port supporting a 30W max. power output

NOTE: Product currently out of stock which will delay delivery by 2 to 3 weeks
