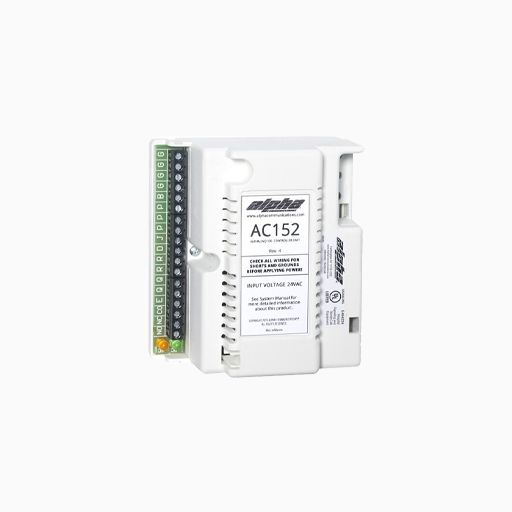

Alpha AC152 AlphaLinQ 100 Series Controller Unit

Description

The Alpha Communications® AC152 annunciator control unit is used to provide power and control circuits to operate the AlphaLinq™ 100 series visual nurse-call system, but can be used and is backwards compatible with some older systems as well.

The AC152 contains the electronic circuitry necessary to detect the presence of routine and emergency calls, and to generate audible and visual control signals. It provides steady or intermittent voltages to operate visual signaling devices.

Main Features

• U.L. Listed 1069 - to the latest standards
• Built-in Battery Charging circuit
• Yellow LED for primary power in; Green LED for secondary power out indication
• Built-in Form 'C' Dry Contact Relay to activate external devices
• Routine and emergency commons incorporate short protection circuity
• Provides steady light and slow tone for routine call flashing light and rapid tone for emergency call

NOTE: Product currently out of stock which will delay delivery by 2 to 3 weeks
