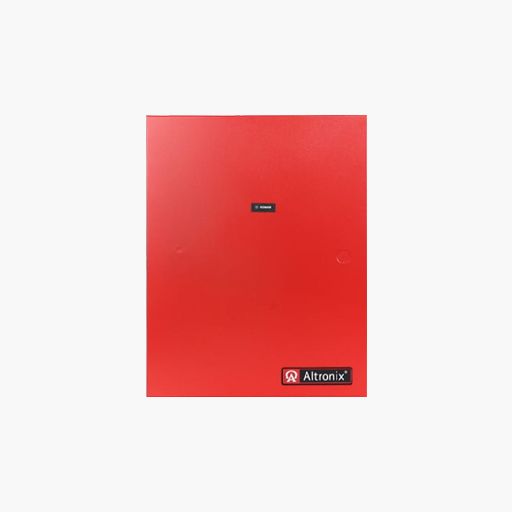

Altronix AL400ULACMCBR Access Power Controller, PTC Class Relay

Description

Altronix ACMCB series distribute and switch power to access control systems and accessories. They convert a 115VAC, 60Hz input into eight (8) independently controlled 12VDC or 24VDC Class 2 Rated power-limited PTC protected outputs.

The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight (8) outputs.

Main Features

• Eight (8) independently controlled Fail-Safe and/or Fail-Secure power outputs
• Class 2 Rated power-limited PTC Protected Outputs (auto-resettable)
• Eight (8) auxiliary power outputs (unswitched)
• Output PTCs are rated @ 2.5A
• Alarm output relay indicates that FACP input is triggered
• Built-in charger for sealed lead acid or gel type batteries
• Instantaneous transfer to stand-by batteries
• UL Listed in the U.S. and Canada

NOTE: Product currently out of stock which will delay delivery by 2 to 3 weeks
