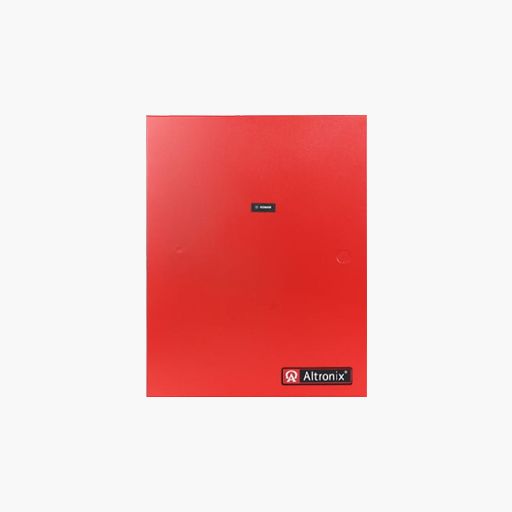

Altronix AL842ADA220 NAC Power Supply, Class or Class Outputs

Description

Altronix AL842ADA220 is an extremely cost effective voltage regulated remote NAC Power Extender. It may be connected to any 24 volt Fire Alarm Control Panel (FACP).

Primary applications include Notification Appliance Circuit (NAC) expansion (supports ADA requirements) and providing auxiliary power to support system accessories.

Main Features

• Ground fault detection
• Signal circuit trouble memory
• Sync protocols include Potter/Amseco, Faraday, Gentex®, System Sensor®, and CooperWheelock®
• Compatible with 24VDC fire panels
• Output loop supervision steered to input 1 or input 2
• Common trouble input and output for external trouble signals tie-in
• Temporal Code 3, Steady Mode, Input to Output Follower Mode (maintains synchronization of notification appliances circuit)
• 2-wire horn/strobe Sync mode allows audible notification appliances (horns) to be silenced while visual notification appliances (strobes) continue to operate

NOTE: Product currently out of stock which will delay delivery by 2 to 3 weeks
