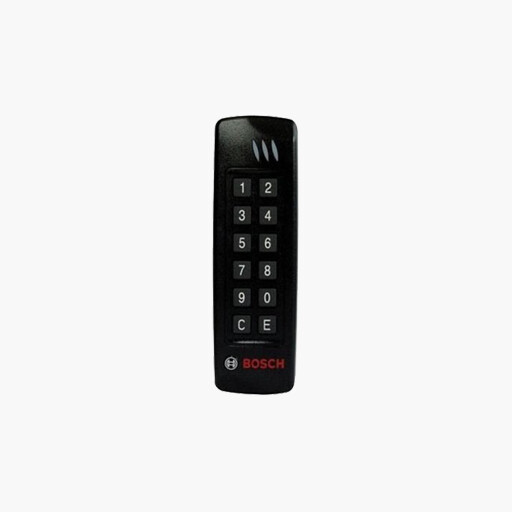

Bosch ARD-AYBS6360 LECTUS Duo MIFARE Classic Card Reader

Description

The LECTUS duo 3000 classic line consists of two readers for MIFARE classic cards and transponders. They support the data record of Bosch coded MIFARE credentials and the CSN of ISO14443A cards as well.

Both readers provide a 26 Bit Wiegand and RS485/ OSDP host interface, selectable easily by DIP switch. When operating in RS485/OSDP mode up to eight readers can be connected to a respective controller, e.g. AMC2-4R4. Reader address is settable via four DIP switches individually.

Main Features

• RS485/OSDP and 26 Bit Wiegand interface
• For use with MIFARE classic cards and key-fobs
• IP65 rated for indoor and outdoor use
• Wall or mullion mount
• Tamper switch
