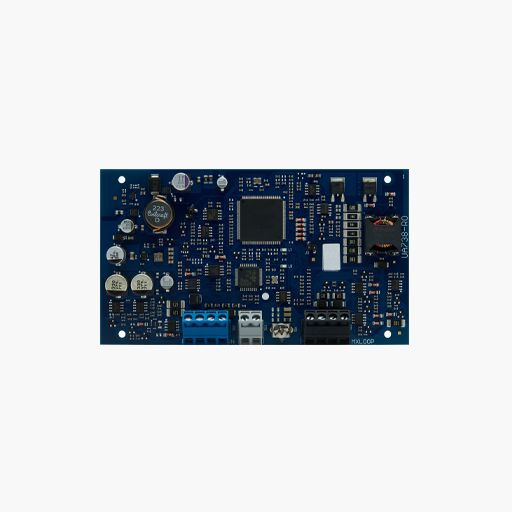

DSC HSM3105MX Interface for MX Loop Max 124 MX Devices

Description

SM3105 is an expansion module intended to provide MX addressable device expansion to IQ Pro and IQ Pro P Panel. The module connects to the panel using the Corbus interface and provides connectivity for two 2 wire MX addressable bus that devices are connected to.

The two MX buses which are left and right can be configured to operate as a single loop or as separate left and right spurs.

Main Features

• Support for Both Two Wire and Four Wire Configurations
• It can be installed in the IQ Pro Enclosure or Separately
• Load Configuration Using a Linked Spreadsheet
• High Power and Lower Power Modes
• Temperature Range: -10°C to +55°C
• Support for Line T-Tapping/Spurs
• Installation with IQ Installer
