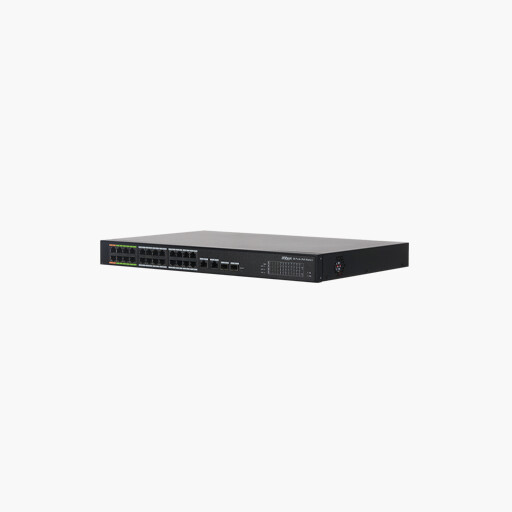

Dahua DH-LR2226-24ET-360 24-Port PoE Switch with Eight ePoE

Description

DH-LR2226-24ET-360 is a 24-Port web managed ePoE switch, which is able to realize PoE transmission over 800 meters Ethernet cable at the speed of 10Mbps, or 300 meters at the speed of 100Mbps. Besides, it supports PoE and PoC power supply technology, which has greatly simplified construction and wiring.

Dahua ePoE technology offer a new way to accomplish long distance transmission between IP camera and network switch. It allows more flexible surveillance system design, improves reliability and saves construction and wiring cost.

Main Features

• Layer 2 Managed Network ePoE Switch
• Enhanced Power and Data Transmission Distances with ePoE
• Supports Long Distance ePoE Transmission, up to 800 m (2524 ft)
• Supports IEEE, E100, and E10 Transmission Modes (Ports 1 to 8)
• Supports Twisted-pair and Coaxial Cable Transmission (Ports 1 to 8)
• Web Management Protocols: 802.1Q, VLAN, STP/RTSP, LACP, 802.1X, QoS
• Supports PoE Management, Green PoE, and Legacy Support
• Supports the IEEE802.3af and IEEE802.3at Standards and Hi-PoE
• Conforms to the IEEE802.3, IEEE802.3u, IEEE802.3ab/z and the IEEE802.3X Standards
