Edwards Signaling 116 Class Explosion Proof Pendant Mounting Module

Description

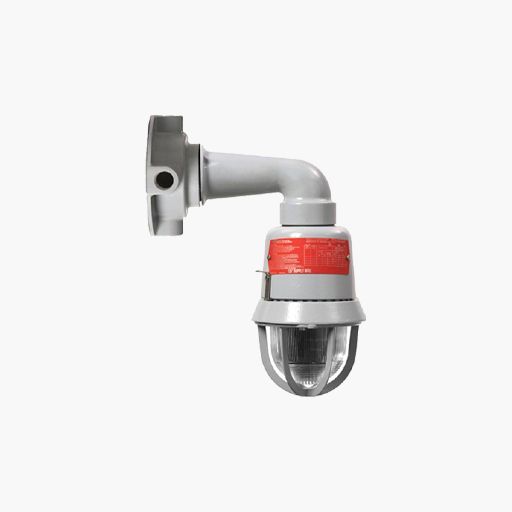

Edwards 116 Series Genesis fire alarm strobe is designed for use in Class 1, Division 1 and 2 explosionproof and hazardous location applications where electrical supervision is required.

These units are UL 1638 and cUL listed for outdoor use as a NEMA Type 3R and 4X enclosure; and Canada (cUL) to Canadian standard ULC-S526-07 suitable for indoor or outdoor applications.

Main Features

• Corrosion-resistant epoxy finish
• Wall-mounting with side brackets
• Power connection wires embedded in sealing compound
• Tapped for 3/4" conduit
• NEMA 4X
• 97 dB at 10'
• 120VAC (878EX-N5), 24VDC at 160 mA (879EX-G1)
• UL listed for Class 1, Divisions 1 and 2, Groups B, C, D; Class II, Divisions 1 and 2, Groups E, F; Class III locations UL File #E14660

NOTE: Product currently out of stock which will delay delivery by 2 to 3 weeks
