Gentex GHSLF177W Low-Frequency Audible and Visible 24VDC Horn

Name: Gentex GHSLF177W Low-Frequency Audible and Visible 24VDC Horn
Brand: Gentex
SKU: GHSLF177W
Price: 179.99 CAD
Availability: InStock

Store / Catalog / Fire and Safety / Fire Notifications

C$179.99

In stock: 1 available

Product Details

Brand: Gentex

Description

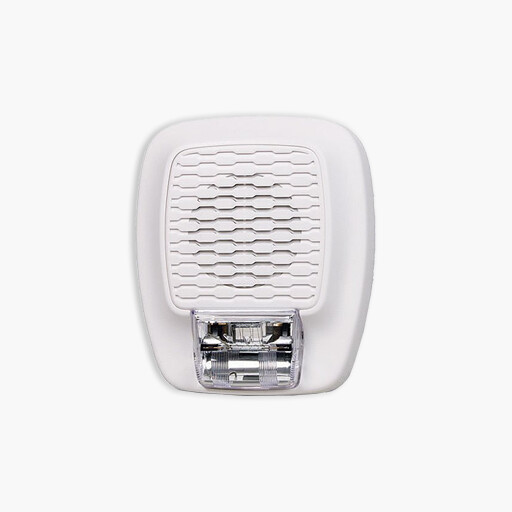

The GHSLF is a high quality, low profile, low frequency audible and visible appliance that offers a dependable audible and visual alarm. The GHSLF is ideal for any occupancy that requires notification appliances. It offers a 520 Hz square wave, temporal 3 tone.

A jumper selection is available for normal or loud decibel tone. A temporal 4 pattern is available when used with the Gentex GTSM Synchronization Control Module. The GHSLF is available in a fixed 15, 110 and 177 candela strobe.

Main Features

Nominal voltage 24 VDC
Unit Dimensions: 6-1/2" (16.5 cm) high × 5-1/2" (14.0 cm) wide × 2" (5.0 cm) deep
Produces a 520 Hz square wave, temporal 3 tone
Fixed candela options: 15, 110 and 177
Jumper selection for normal or loud dBA
Super-Slide® Bracket - Ease of Supervision Testing
Checkmate® - Instant Voltage Verification
Prewire entire system, install mounting bracket, then install signals
Input terminals accept 12 to 18 AWG
Synchronize horn/strobe with Gentex GTSM Synchronization Control Module
