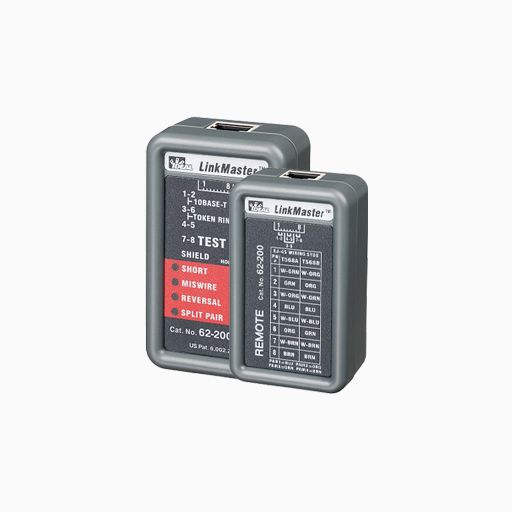

IDEAL 62-200 LinkMaster RJ-45 CAT5e/6 Wiremapper

Description

The 62-200 LinkMaster™ is our basic Wiremapper for identifying wiring and continuity errors in twisted pair cabling. Wiremapper are used to verify if the cable is physically terminated properly at both ends and that there are no major cable defects present in the cable, such as cut conductors, that would prevent signal continuity.

Colored LED lights identify pass/fail conditions of each pair of wires in RJ-45 8 conductor cables. This tester is used for testing RJ-45 connector cables terminated to Cat 3/5/5e/6/6a twisted pair cables.

Main Features

• Identifies shield continuity
• RJ-45 port interfaces
• Designed for CAT3/5/5e/6/6a cables
• For 8 conductor 4-pair, twisted pair cables
• Debug feature cycles through errors pair by pair
• Identifies errors by pair: shorts, opens, miswires, reversals, and split pairs

NOTE: Product currently out of stock which will delay delivery by 2 to 3 weeks
