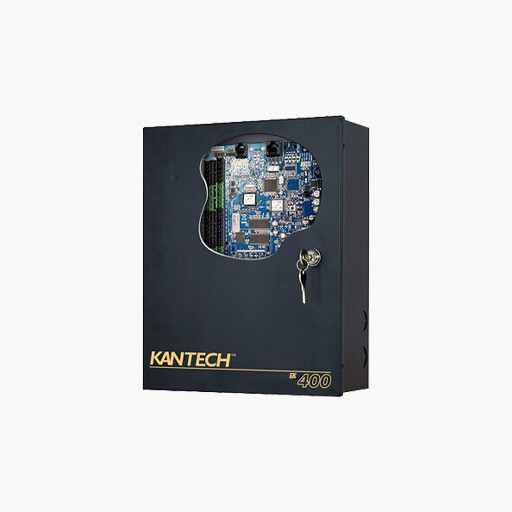

Kantech EK 400 Access Control Expansion Kit 3 Piece

Description

The Expansion Kits offer a comprehensive and easy to install solution for small to medium size businesses to expand their access control system in one door increments (KT-1), two-door (KT-300) or four door increments (KT-400).

The expansion kits are compatible with Entra-Pass Special Edition, Corporate Edition and Global Edition. Available in different configurations depending on number of doors, Access Control Kits are an ideal way to experience the value that Kantech brings to an integrated security solution.

Main Features

• Supports four readers and expand inputs, outputs, and relays with the addition of expansion modules
• Onboard Ethernet 128-bit AES-encrypted communication with the Entra-Pass system ensures a high degree of network security
• Control the occupancy level in a defined location with the anti-pass back feature
• 100,000 card capacity and provides up to 20,000 concurrent events in stand-alone mode
• Removable terminal blocks help expedite installation and enhance serviceability
• 256 inputs (16 onboard with high security double end-of-line resistor configuration) and 256 outputs (four onboard) provide scalability
• Communicates with the Entra-Pass Gateway only when an event has occurred, ensuring low network bandwidth consumption (Special and Corporate Editions only)
• Verify and configure IP settings with a built-in web configuration page
• Supervised door lock outputs with internal or external power supply
