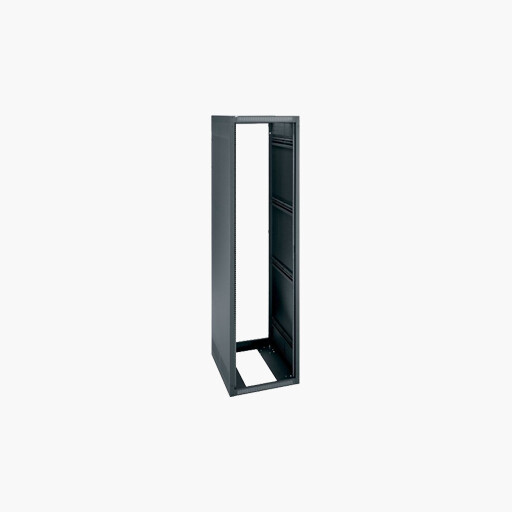

Middle Atlantic ERK-4428LRD ERK Series Frame Only, 28" Deep

Name: Middle Atlantic ERK-4428LRD ERK Series Frame Only, 28" Deep
Brand: Middle Atlantic by Legrand
SKU: NO-ERK4428LR
Price: 1667.99 CAD
Availability: InStock

Store / Catalog / Audiovisual / Signal Distribution / Audio Racks

C$1,667.99

In stock: 1 available

Product Details

Brand: Middle Atlantic by Legrand

Description

An economical standalone rack with solid sides, the ERK series can also be ganged to create partitioned multi-bay installations for thermal management control, future growth or other purposes. Seismic certified to protect your components.

Rack shall be of fully welded construction. Weight capacity shall be 2,500 lbs. ERK shall be finished in a durable black powder coat. ERK shall come equipped with one pair of fully adjustable 11-gauge steel rackrail with tapped 10-32 mounting holes in universal EIA spacing, black e-coat finish and numbered rackspaces.

Main Features

2,500 lb. weight capacity
3-1/4” wide vertical lacer strip (height varies based on model)
UL Listed in the US and Canada
Seismic certified (when used with ERK-Z4 option) with an Ip value of 1.5
22” OD width, available 20”, 25” or 28” OD depth
Standard front, optional rear 11-gauge 10-32 threaded, fully adjustable rackrail with numbered rackspace increments
1/2” , 3/4”, 1” & 1-1/2” electrical knockouts on removable split rear plates top and bottom, easily removable for cable pass-through. Top plates additionally include UHF / VHF knockouts

NOTE: Product currently out of stock which will delay delivery by 2 to 3 weeks
