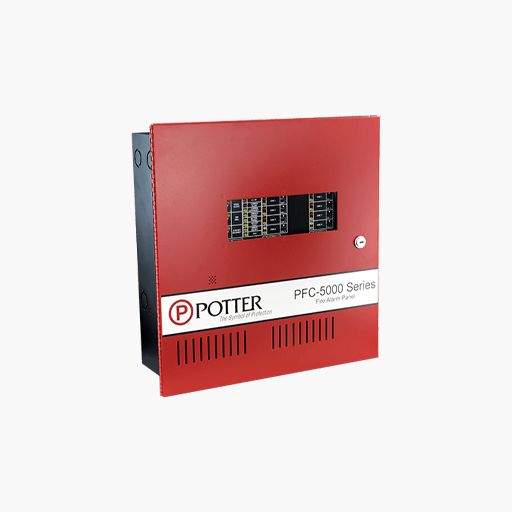

Potter PFC-5008 Microprocessor Based 8-Zone Conventional Fire Panel

Description

Potter's PFC-5008 Fire Alarm Control Panel is a microprocessor based unit designed for small to medium commercial, residential, multi-family, institutional and industrial occupancies.

The PFC-5008 comes standard with 8 Class B (Style B) Initiating Circuits which may be configured as 4 Class A (Style D) circuits. In addition, it comes equipped with 4 Class A/B (Style Z/Y) Indicating circuits which are each rated at 1.7 amps.

Main Features

• Each Indicating Circuit can be configured as Silence-able or Non-Silence-able
• Audibles may be configured as Steady, Temporal Code, California Code or March Time
• Predefined Initiating Circuits can be configured as Waterflow or Latching/Non-Latching Supervisory
• Built-in RS-485 Interface for RA8F Multiplexed Remote Annunciators (Up to 3 Annunciators)
• Interface for Remote Trouble Indicator
• Built-in Walk Test operation
• Auto Signal Silence

NOTE: Product currently out of stock which will delay delivery by 2 to 3 weeks
