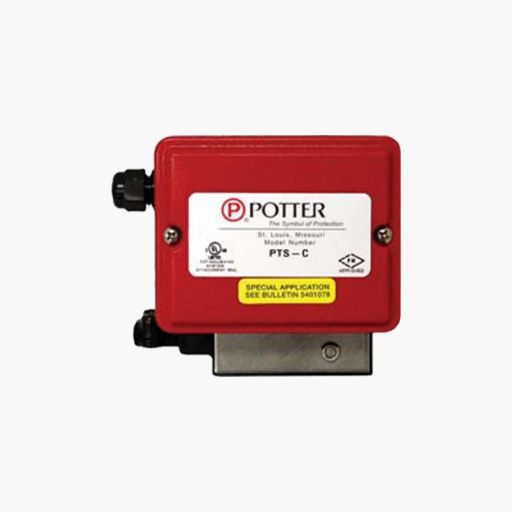

Potter PTS-C Plug-Type Supervisory Switch

Description

The Model PTS-C is designed to supervise sprinkler system control valves and may also be used to secure gates and other applications. This unit is particularly useful for unusual conditions, such as non-rising stem valves.

Nema 6P enclosure allows the device to be mounted outdoors, even in areas subject to flooding such as pits and wells. Sealed reed switch operation virtually eliminates contact corrosion.

Main Features

• Enclosure: Non-Corrosive Composite Material
• Dimensions: 7 L x 3.75W x 3 D (including bracket)
• Cable: 2-wire, 18 Ga. Waterproof - Approx. 8' (2,43m) long
• Temperature range: -40° F to 140° F (-40° C to 60° C)
• Housing Cover Tamper: Activated by housing cover removal
• UL and cUL Listed, FM Approved, CSFM Listed, NYMEA Accepted
• NEMA 4 and NEMA 6P rated enclosure when proper electrical fi ttings are used. (IP67

NOTE: Product currently out of stock which will delay delivery by 2 to 3 weeks
