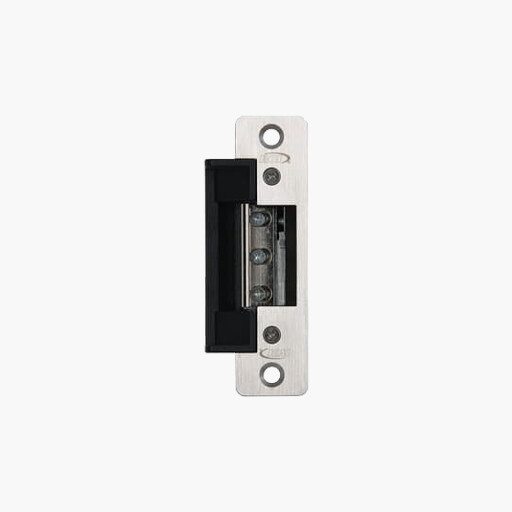

RCI 7114 7 Series Centerline Electric Strike, Fail Secure, 12VDC

Description

The 7 series centerline strikes accommodate 5/8” latch projections with various faceplate options to match most frame types. The RCI 7 series centerline strikes are compatible with a large range of door thicknesses from 1-3/8”-2-3/8”.

These strikes function effectively with aluminum, cylindrical, centerline mortise locks, & exit devices. The RCI 7 series allows installers to adjust the strike pivot horizontally up to 1/8” for precise alignment.

Main Features

• Accommodates 5/8" (16mm) latch projection
• 1/8" (3.2mm) horizontal adjustment
• 1-1/2" (38mm) cut-out depth
• Use with wide range of door thicknesses 1-3/8" to 2-3/8" (35mm-60mm)
• Mounting tabs, fasteners and trim plate included
• Trim plate included to cover up irregular frame cutout
• 280mA 11-16VAC, 12VDC, 24VACVDC (At 12VDC)
• 500lbf Static 70ft-lb Dynamic
• 250,000 Cycles
