RCI R0161DDHS 0 Series 3- Inch Semi-Mortise Rim, Silver Powder Coat

Description

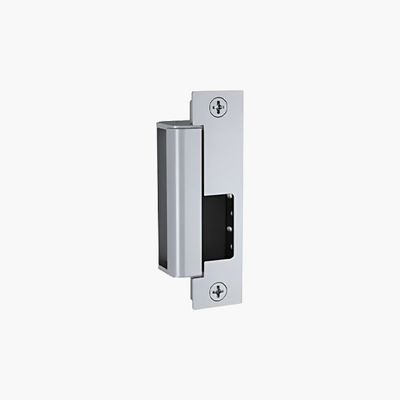

The 0161 is a 3/4" semi-mortise electric strike that is designed to operate with Pullman latch rim exit devices. The stainless-steel finish creates a sleek attractive architectural appearance.

The slotted horizontal holes on the faceplate allow for easy and secure mounting during installation and correct alignment with the exit device. It features a hazard-free radius design.

Main Features

• Semi-mortise rim strike designed for use with Pullman latch rim exit devices
• Accommodates 1/2" to 3/4" (13mm–19mm) latch projection
• Ensures proper latch alignment with horizontal adjustment
• Stainless steel ensures superior strength and creates a sleek aesthetic design
• Lockdown holes for secure mount
• 200mA 12VAC/VDC Or 24VAC/VDC (Max at 12VDC)
• 1,500lbf Static 70ft-lb Dynamic
• 500,000 Cycles
• Fail-Secure & Fail-Safe
