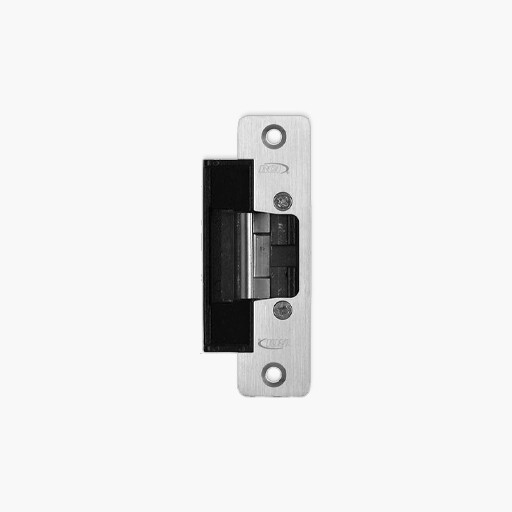

RCI S6504 6 Series Centerline Electric Strike, Standard Profile

Description

The 6 series centerline strikes are available in standard profile or low-profile options to accommodate different latch projections. This heavy-duty series combines several requested key features.

Standard features include a multi-voltage single solenoid, selectable lock mode (no tools necessary), horizontal adjustment, and plug-in wire connectors. ¼” horizontal adjustment makes installations faster and easier.

Main Features

• Standard profile accommodates 3/4" (19mm) and Low-profile accommodates 1/2" (12.7mm) or 5/8" (16mm) latch projections
• 1/4" (6.4mm) horizontal adjustment
• Plug-in wire connectors
• Trim plate included to cover up irregular frame cut-out
• 375mA Field-Selectable 12/24VDC, 12-24VAC (At 12VDC)
• 1,500lbf Static 70ft-lb Dynamic (04 & 14 faceplates only. Grade 2, 1,000lbf static for 05, 07 & 08 faceplates)
• 500,000 Cycles (04 & 14 faceplates only. Grade 2, 1,000lbf static for 05, 07 & 08 faceplates)
• Field-Selectable Fail-Secure & Fail-Safe
• Optional Latch & Keeper Monitor Models Available
