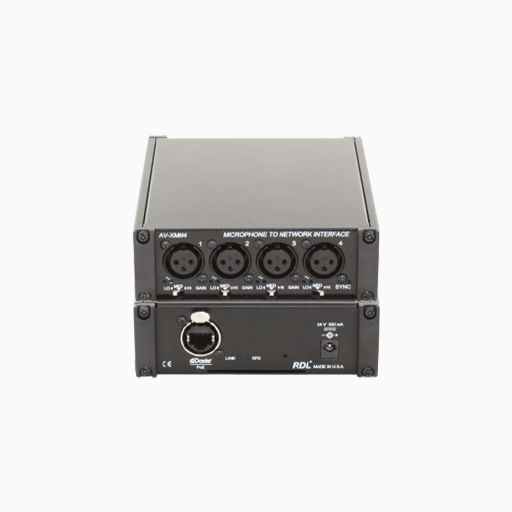

RDL AV-XMN4 Microphone to Network Interface, Dante Network

Description

The AV-XMN4 is an interface that converts four XLR microphone inputs to Dante network audio channels. Special software is not required to configure the AV-XMN4.

A dual-LED VU meter displays the level for each input to facilitate selection of the ideal gain range. P48 phantom voltage is supplied to each microphone input.

Main Features

• Four XLR Front-Panel Inputs
• 48 V Mic Phantom (P48) on each input
• LED Indicator for Valid Power and Network Sync
• Mounts on a Microphone Stand using an RDL SF-MSM1
• Dante Network Interface for Four Audio Mic Inputs
• Operation from PoE Power (Class 0, IEEE 802.3af) or external 24 Vdc
• Converts Four Standard XLR Mic Audio Sources to Dante Network Channels

NOTE: Product currently out of stock which will delay delivery by 2 to 3 weeks
