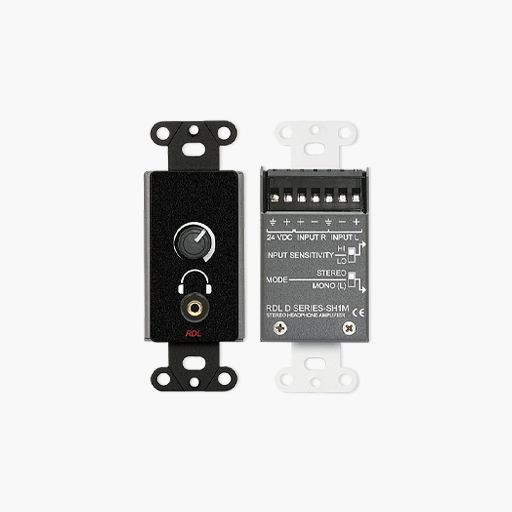

RDL DB-SH1M Stereophonic Headphone Amplifier, 1/8" (3.5mm) Jack

Description

The DB-SH1M is used in applications requiring headphones of any impedance to be driven from consumer or professional audio sources. It is ideally suited to applications as diverse as language translation, museums, interview studios and music stores.

The -SH1 is a dual channel headphone amplifier with balanced/unbalanced left and right inputs. Each input accepts operating levels between -20 dBV and +20 dBu. Two recessed slide switches located on the side of the rear enclosure are set prior to mounting the module.

Main Features

• Integral Long-Life VCA Stereo Level Control
• Balanced or Unbalanced Inputs
• Switch-Selectable Input Sensitivity

NOTE: Product currently out of stock which will delay delivery by 2 to 3 weeks
