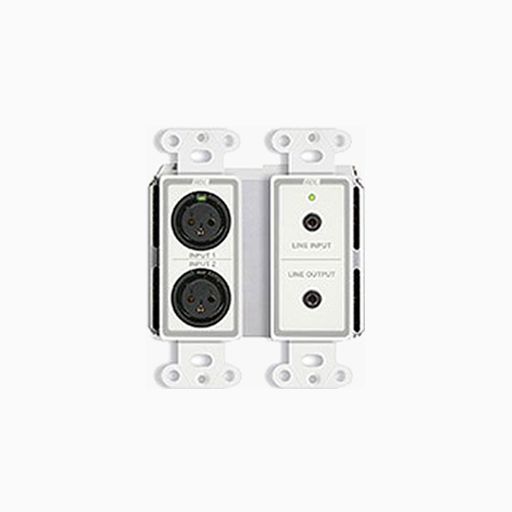

RDL DD BN31 Wall Mounted Bi-Directional Mic Line Dante Interface

Description

The DD-BN31 is a complete wall-mounted Dante audio network interface. It features two XLR mic or line inputs, one stereo Mini-jack line input and one stereo Mini-jack line output on the front panels, plus two line outputs on a rear-panel detachable terminal block.

Special software is not required to configure the DD-BN31. Each XLR input provides three switches that may be set from the front of the unit when the cover plate is not installed.

Main Features

• Switch-Selectable 48 V Mic Phantom (P48)
• Each XLR Input is Switch Selectable for Mic or Line
• Switch-Selectable Line Gain: Unity, 12 dB or 19 dB
• Converts Four Dante Network Audio Signals to Line Level
• Dante Network Interface for Four Audio Inputs and Four Audio Outputs
• One Mini-jack Front-Panel Output; Two Outputs on Rear-Panel Terminal Block
• Converts Two Standard XLR Mic or Line Audio Sources to Dante Network Channels

NOTE: Product currently out of stock which will delay delivery by 2 to 3 weeks
