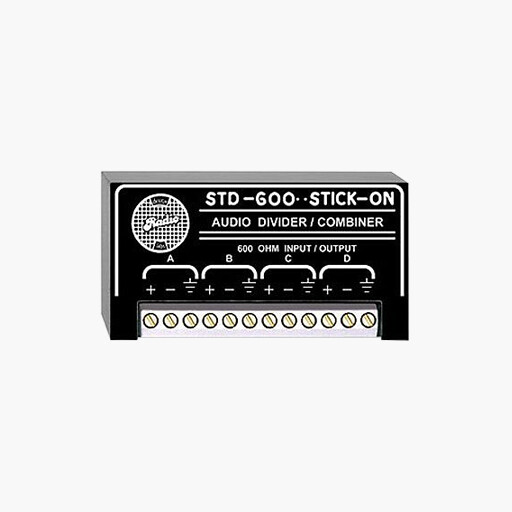

RDL STD-600 Passive Audio Divider-Combiner, 600 Ohm

Description

The STD series of products is part of the STICK-ON line of products from Radio Design Labs. It is a resistive branching network with RF filtering on each of the four channels. Any channel, A through D, may be either input or output.

This permits combining stereo signals into mono inputs, splitting mono signals to multiple inputs, and even combining microphones with output shorting switches into a single amplifier input. The STD modules are available in 150ohms, 600ohms, and 10k ohm models. All inputs and outputs are balanced.
