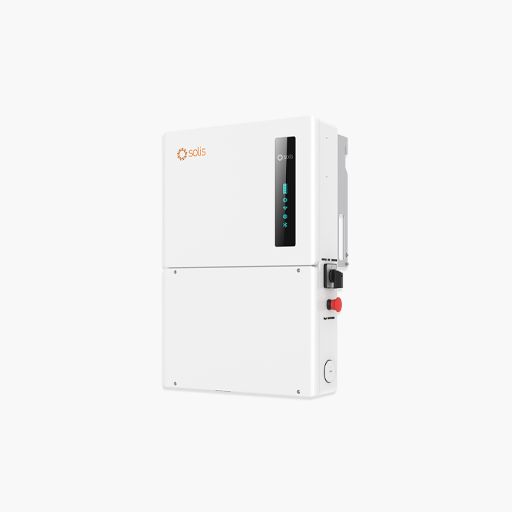

Solis S6-EH1P10K-H-US-APST, 10kW, 600Vdc, Hybrid Storage

Description

The S6 (Series 6) hybrid energy storage inverter is the latest Solis US model certified to IEEE 1547-2018, UL 1741 SA & SB, and SunSpec Modbus, providing economical zero-carbon power from an all-weather (NEMA 4X / IP 66) high-efficiency PV string inverter.

This new PV / Battery inverter can be dc-coupled to a variety of certified high-voltage Lithium batteries. The S6 hybrid is a grid-forming inverter that supports the latest large PV modules with high current (16 amp) dc inputs at each MPPT.

Main Features

• Up to 4 MPPTs and 16A of DC input current allows for PV array design flexibility
• Optimization, module-level monitoring, and rapid shutdown options available
• External RSD, EPO signal and BYPASS switch are available
• UL 9540 certified with multiple different battery brands (LG, BYD, Pylontech, ect)
• Bluetooth connection to mobile phone, make the setting and operation easier
• Intelligent AC coupling scheme, easily upgrade existing grid-connected systems
• Whole-home backup, generator integration, and load shading function with the new SolisHub
