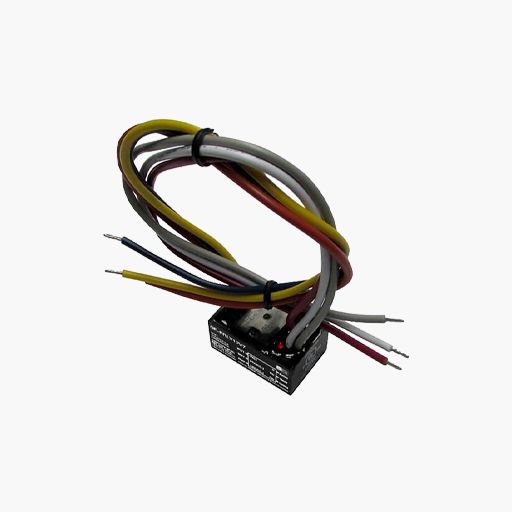

UltraTech 0E-FRLY12V7 7A Multi-Voltage Relay Module

Description

OE-FRLY12V7 is an encapsulated multi-voltage relay suited to applications requiring a remote relay for control or status feedback. It includes long flying leads with selectable input voltage. A red LED indicates that the relay coil is energized.

Applications include fire alarm control, security systems, HVAC, temperature control, lighting systems and energy management. 0E-FRLY12V7 is UL864 listed for Fire Alarm Control Equipment. Includes mounting/wiring hardware.

Main Features

• Voltage Input: 12VDC, 24VDC
• Polarized Coil Input: DC Control Input Only
• Dry Form C SPDT contacts
• Selectable 12 or 24VDC input voltage
• Red LED indicates relay coil is energized
• Six (6) 12" 18AWG flying leads
• ABS plastic housing, epoxy resin potting
• Contact Ratings: 5VDC = 250µA/ 0.35 P.F.; 24VDC = 7A/ 0.35 P.F.; 120VAC = 7A
