UltraTech 0E-FRLY24V10 10A Multi-Voltage Relay Module

Description

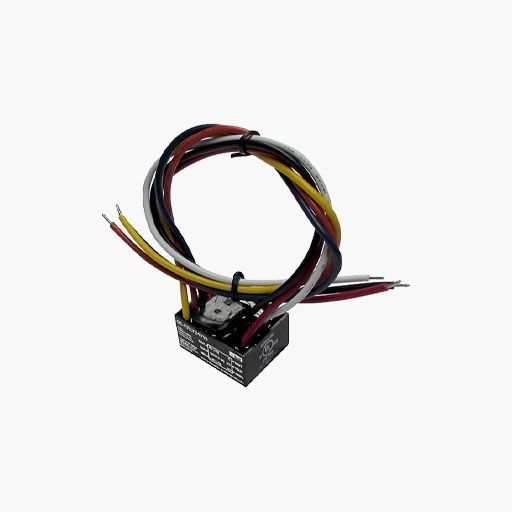

OE-FRLY24V10 is an encapsulated multi-voltage relay suited to applications requiring a remote relay for control or status feedback. It includes long flying leads with selectable input voltage. A red LED indicates that the relay coil is energized.

Applications include fire alarm control, security systems, HVAC, temperature control, lighting systems and energy management. 0E-FRLY24V10 is UL864 listed for Fire Alarm Control Equipment. Includes mounting/wiring hardware.

Main Features

• Voltage Input: 24VDC, 24VAC, 120 VAC
• Polarized Coil Input: DC Control Input Only
• Dry Form C SPDT contacts
• Selectable 24VDC, 24VAC or 120VAC input voltage
• Red LED indicates relay coil is energized
• Six (6) 12" 18AWG flying leads
• ABS plastic housing, epoxy resin potting
• Current Draw: @24VDC = 15mA; @24VAC, 60HZ = 52mA; @120VAC, 60HZ = 38mA
