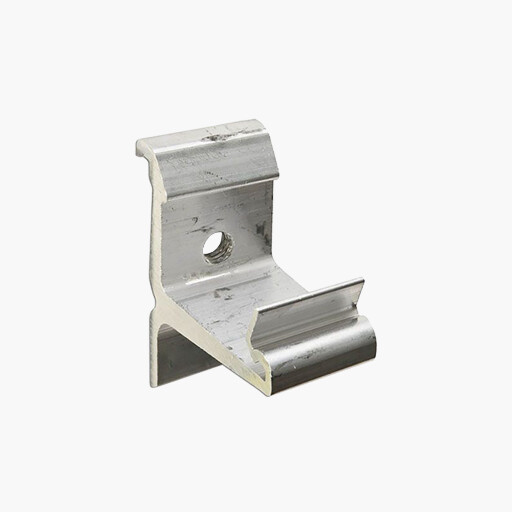

Unirac 310750 RM Module Clip

Description

Roof Mount module clip for use with RM Ballast Bays, provides electrical bonding between module and ballast bay. Mill finish aluminum. Order 4 clips per module, plus 2 clips per module on E/W edges. Requires bolt, order separately.

Nain Features

Clamp Material: One of the following extruded aluminum, with mill finish, 6105-T5 or 6005A-T61 per ADM 2010 Ultimate Tensile Strength 38ksi, Yeild Strength 35ksi

Bolt material: 3/8-16 x 1 ¾ UNC-2A, 300 series SS, ASME B18.2.1

Weight: Clamp and bolt, .25 lbs

Allowable design loads are valid when components are assembled and used according to authorized Unirac RM documents

Resistance factors and safety factors are determined according to part 1 appendix 1 of the 2010 Aluminum Design Manual
