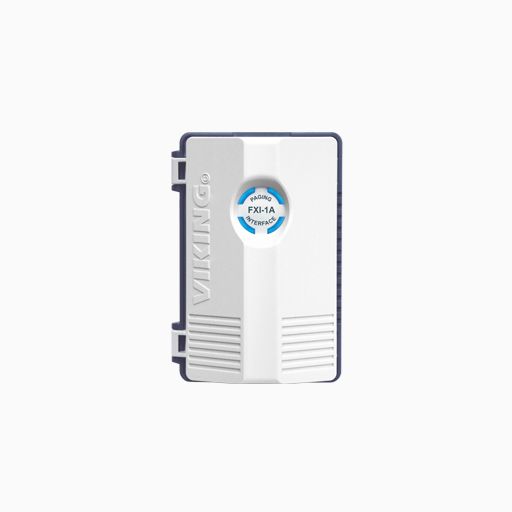

Viking FXI-1A Universal Smart Paging Interface

Description

Viking's FXI-1A universal paging interface allows you to provide paging from virtually any type of phone system instead of from a microphone. You can also provide background music and electronic night bell over the audio system.

The FXI-1A provides 30V talk battery for interfacing with an FXO or unused analog line input / trunk port. With the flip of a switch, the unit can connect to an FXS or PABX station ring trip port; no power supply is required in this mode.

Main Features

• No power supply required in FXS interface mode
• Floating 600 Ohm paging output with volume control
• Compatible with 24V to 48VDC FXS operation
• Calling party control (CPC) detection for immediate disconnect
• Select: FXO (loop start), FXS (ring trip) or paging port (VOX relay) interface mode
• 30V DC talk battery for interfacing with FXO or unused phone system line input / trunk port
• SPDT relay for external paging amp activation or interfacing the paging amp with an external background music source

NOTE: Product currently out of stock which will delay delivery by 2 to 3 weeks
