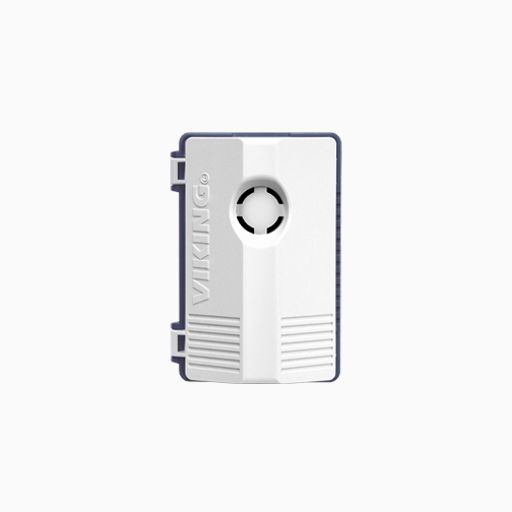

Viking LVR-1 Line Verification Relay

Description

The LVR-1 Line Verification Relay is useful on analog phone lines and extensions that do not have a method of monitoring the status of the idle phone lines. Phone lines can go out of service at any time and without any warning.

The LVR-1 Line Verification Relay monitors the voltage on an analog phone line. When that voltage goes below 2 volts for a programmable time, an on-board relay is activated.

Main Features

• Wall mount housing with (2) #6×3/4 panhead screws
• Power supply included
• Phone line connection thru an RJ-11 or terminal block
• Power connection thru a 2.1 mm plug or terminal block
• DIP switch selectable delay times of 5, 10, 15, and 20 Seconds
• On-board 2 pole relay with both NO and NC contacts available

NOTE: Product currently out of stock which will delay delivery by 2 to 3 weeks
